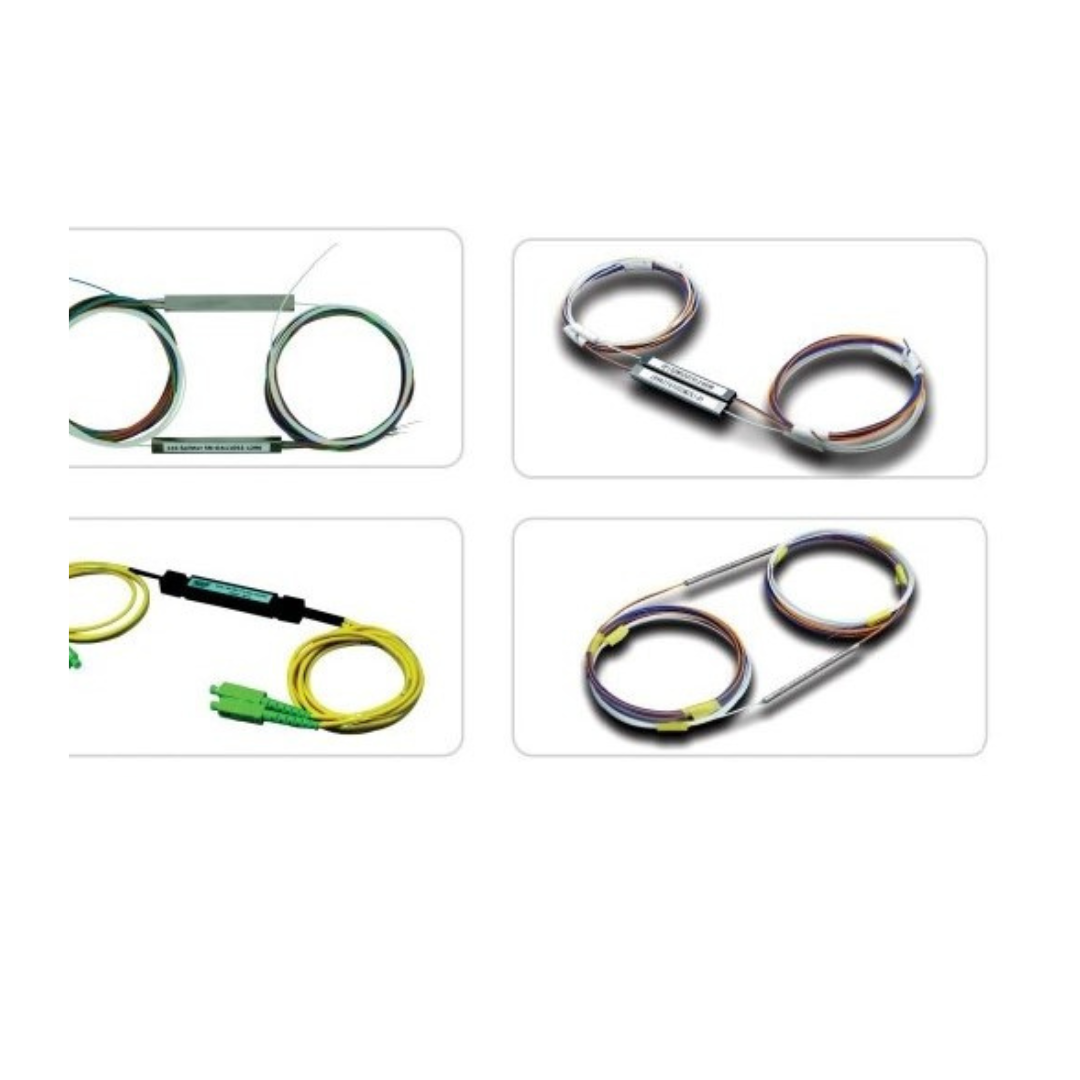

PLC Splitter Singlemode

Physical Characteristics
Length1.5m
Operating Temperature-20°C~ +80°C
Storage Temperature-40°C ~ +80°C
Operating Wavelength1260~ 1650nm
Fiber TypesSinglemode G.657A2 900 µm Steel Tube
Insertion Loss (P/S Grade)3.8/4.0dB (1×2)
7.2/7.4dB (1×4)
10.3/10.7dB (1×8)
13.5/13.7dB (1×16)
16.5/16.9dB (1х32)
Return Loss050dB
Directivity055dB
Wavelength Dependent Loss00.5dB (1×2, 1×4, 1×8, 1×16)
1.0dB (1×32)
Maximum Power Handling (mW)500 Low insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide operating wavelength from 1260nm to 1650nm
High reliability and stability
Connectors
Connector ASC-APC Male
Connector BSC-APC Male

Features:
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide operating wavelength from 1260nm to 1650nm
High reliability and stability
