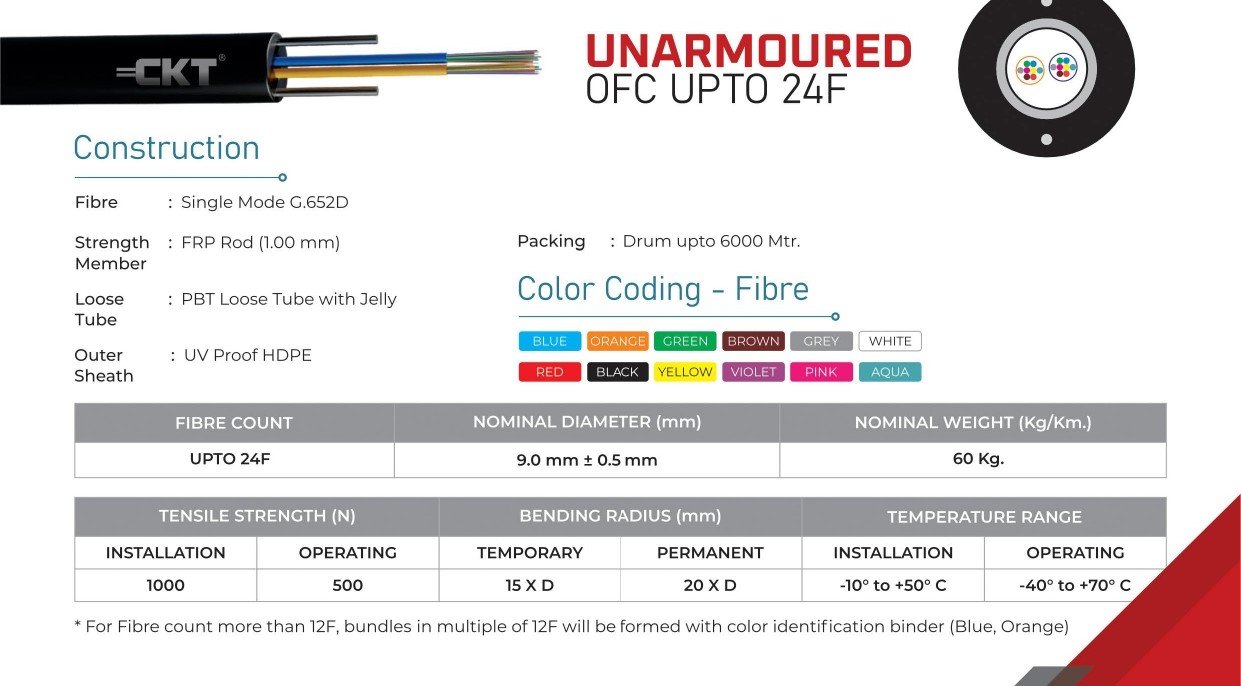

UNARMOURED OFC UPTO 24F

Armoured 6F & 12F
Construction
-o
Fibre : Single Mode G.652D
Strength : FRP Rod (1.00 mm)
Member
UNARMOURED
OFC UPTO 24F
Loose : PBT Loose Tube with Jelly
Tube
Packing: Drum upto 6000 Mtr.
Color Coding – Fibre
BROWN
Outer : UV Proof HDPE
Sheath
FIBRE COUNT NOMINAL DIAMETER (mm)
UPTO 24F 9.0 mm ± 0.5 mm
BLUE ORANGE GREEN GREY WHITE
RED BLACK YELLOW VIOLET PINK AQUA
NOMINAL WEIGHT (Kg/Km.)
60 Kg.
TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
INSTALLATION OPERATING TEMPORARY PERMANENT INSTALLATION OPERATING
1000 500 15 X D 20 X D -10° to +50° C -40° to +70° C
